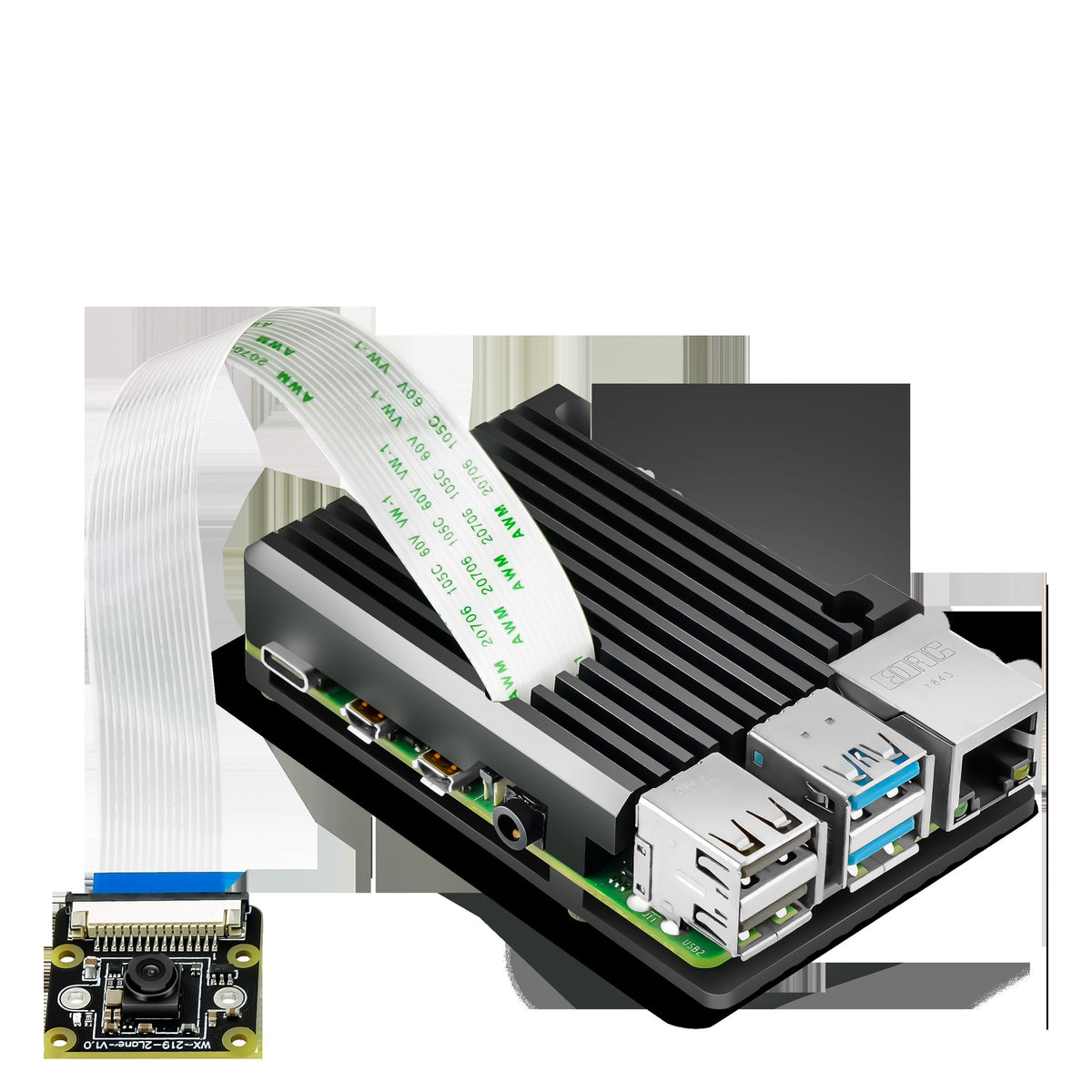

5MP OV5647 CSI Camera Module for Raspberry Pi 4B/5B – 1080p 30fps, 150° Wide Angle, Plug-and-Play FPC Cable – AI, Security & Robotics

See Every Detail – 5MP OV5647 CSI Camera for Raspberry Pi 4B / 5B

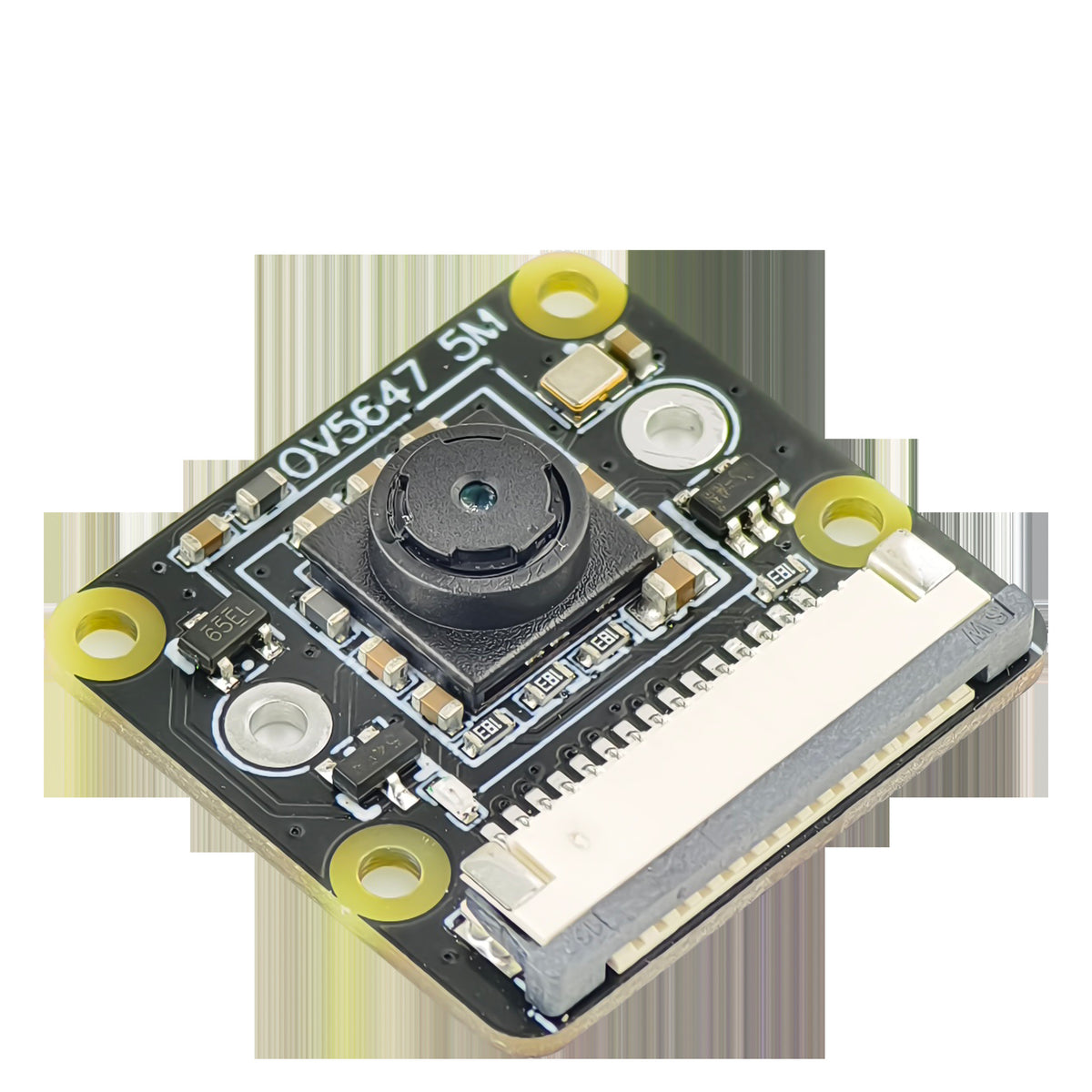

Supercharge your Raspberry Pi 4B, 5B, 3B+, 3A+, or Zero 2 W with this 5 Megapixel OV5647 CSI Camera Module. Built on Omnivision's battle-tested CMOS sensor, it captures razor-sharp 2592 × 1944 stills and smooth 1080p video at 30 fps – no drivers, no USB dongle, no hassle. Just clip on the 15-pin FPC ribbon and start shooting.

Why Engineers & Makers Choose This Module

• Genuine 5MP Resolution – Full 2592 × 1944 still capture plus 1080p / 30 fps video. Rich detail for macro photography, timelapse, and computer-vision pipelines.
• 150° Ultra-Wide Field of View – The 3.6 mm F/2.0 glass-plens lens sweeps a 150° (H) × 115° (V) angle, eliminating blind spots in surveillance and panoramic capture.
• True Plug-and-Play CSI-2 – Native 15-pin FPC connector slots directly into the Pi camera port. Zero driver installation on Raspberry Pi OS Bullseye / Bookworm with libcamera / picamera2.
• Smart Auto Exposure & White Balance – The OV5647 sensor auto-adjusts to dim indoor rooms or bright outdoor scenes, delivering consistent color fidelity every frame.
• Ultra-Compact 25 × 15 × 3.2 mm PCB – Slips into tight enclosures, quadcopter frames, and IoT prototypes without adding bulk or weight.
• IR-Cut Filter Included – Eliminates infrared bleed for true-to-life color in mixed-light environments.

Built for Real-World Projects

• 🔒 Home & Office Security – 24/7 monitoring with MotionEye, Frigate, or Home Assistant. 150° FOV covers entire rooms.
• 🤖 AI & Computer Vision – Plug into OpenCV, TensorFlow Lite, YOLOv8 object-detection, and ROS 2 pipelines out of the box.
• 📸 Photography & Timelapse – Stop-motion, nature observation, and macro shots with 5MP detail.
• 🎓 STEM Education & Makerspaces – Ideal for classroom robotics demos, Raspberry Pi workshops, and DIY electronics kits.
• 🚗 Autonomous & Mobile Robotics – Lane detection, traffic-sign recognition, and SLAM mapping on ROS 2 / Autoware.

What's in the Box

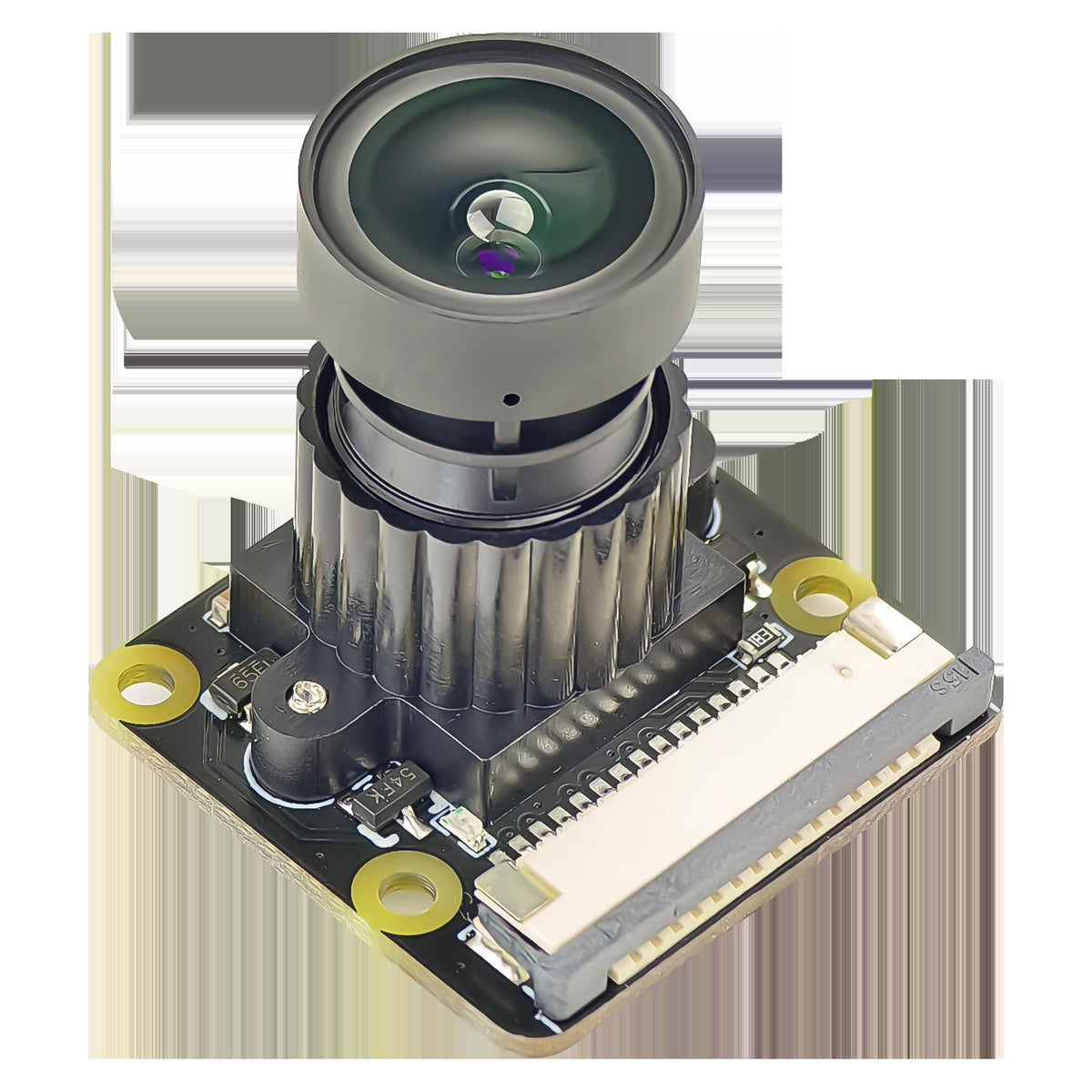

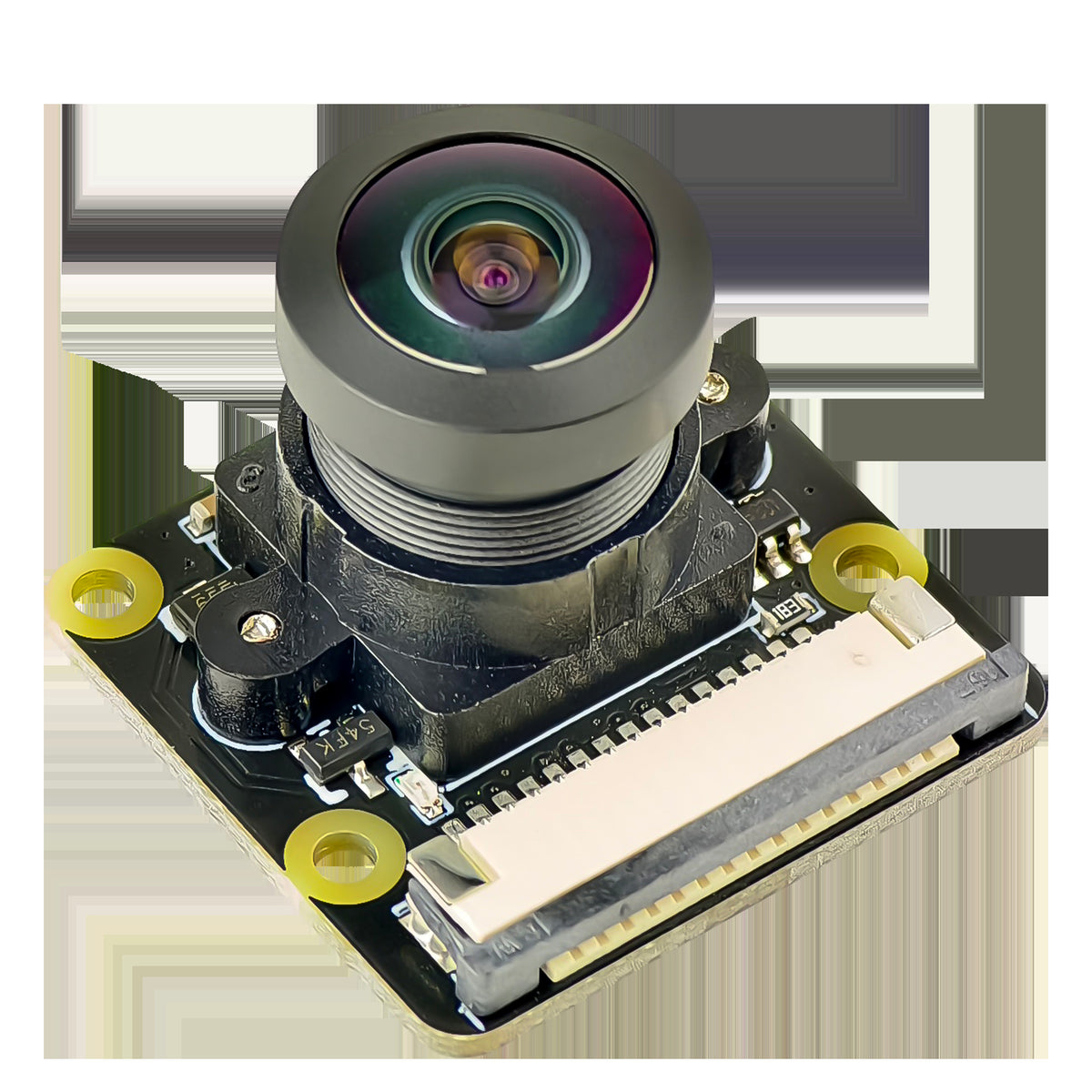

• 1 × 5MP OV5647 CSI Camera Module (PCB + 3.6 mm F/2.0 lens + IR-cut filter)
• 1 × 15-pin FPC Ribbon Cable – 20 cm, double-sided, gold-plated contacts
• 1 × Lens Cap + Adjustable Mounting Bracket (3M VHB adhesive pads × 2)
• 1 × Quick-Start Guide with pinout diagram & wiring reference

Technical Specifications

Get Started in Under 2 Minutes

Step 1 – Enable the camera interface:
sudo raspi-config → Interface Options → Camera → <Enable>

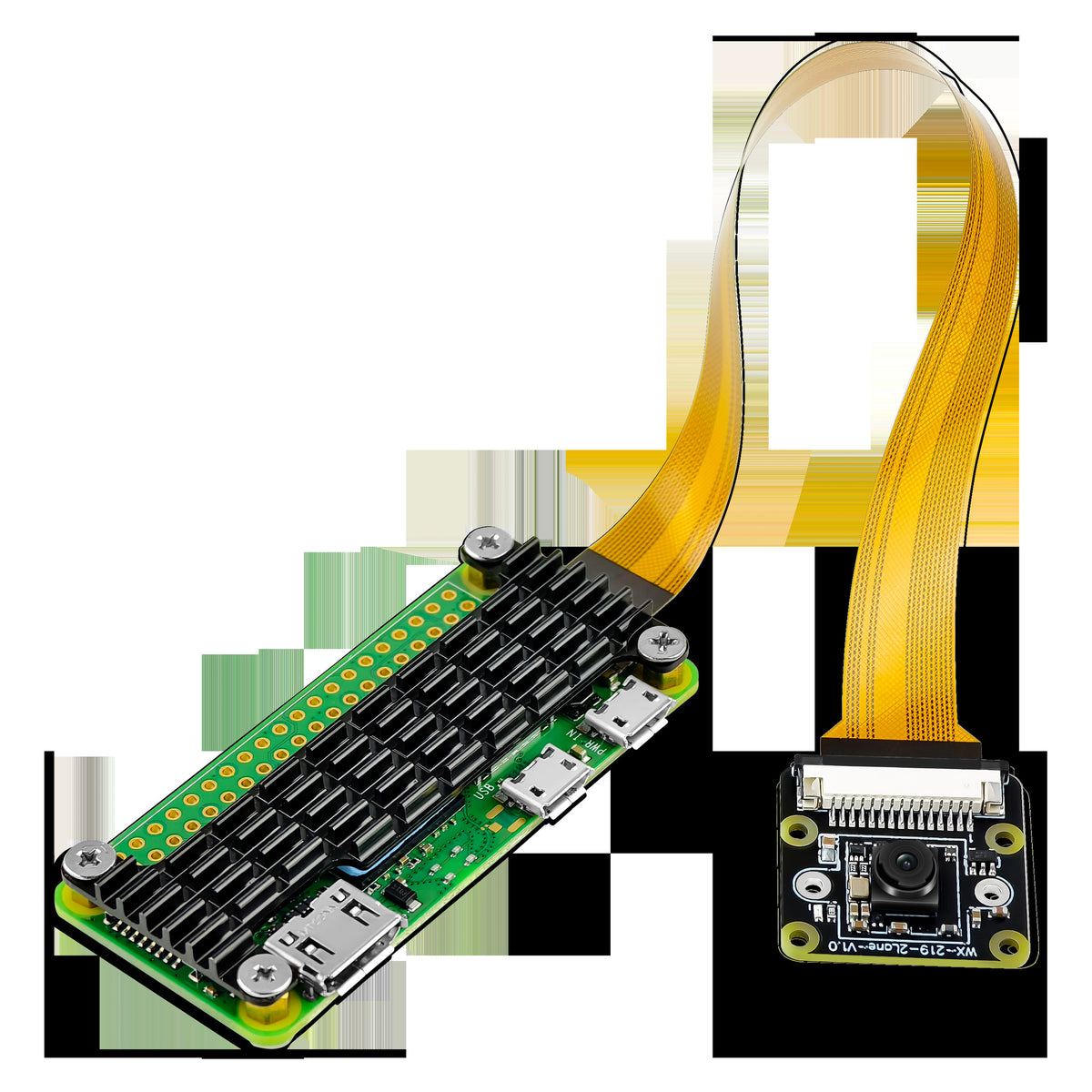

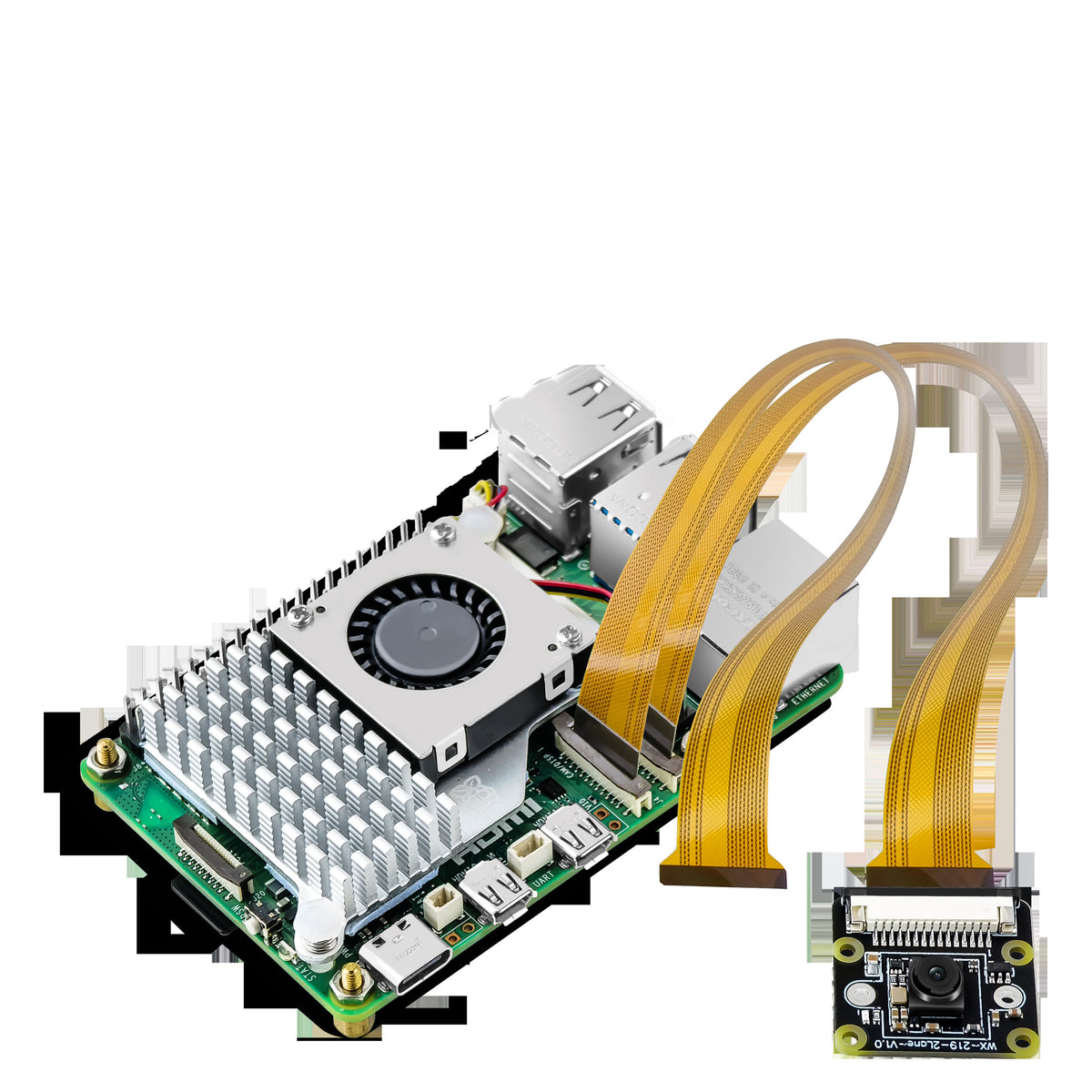

Step 2 – Power off the Pi. Insert the FPC ribbon into the camera port (gold contacts facing up, notched corner aligned with pin 1). Press firmly until the latch clicks.
Step 3 – Power on and capture your first frame:
libcamera-still -o photo.jpg --width 2592 --height 1944

💡 Tip: For AI workloads, run libcamera-jpeg -t 30000 -o stream.jpg to stream 30-second JPEG clips directly into your OpenCV or YOLO pipeline.
